產品名稱：
機器人
型 號：
IRB 4400
價 格：
0.00
品 牌：
ABB
快速、緊湊的通用型機器人
IRB 4400是一種機身緊湊的機器人，可承受載荷最高可達60kg。 除此之外，全能的IRB 4400能勝任各種高精度、高速度和高靈活性的應用。
- 速度快——操作周期時間短
- 精度高——零件生產質量穩定
- 通用性——柔性化集成和生產
- 惡劣生產環境防護
- 鑄造專家型 - IP 67防護等級，可水洗和高壓蒸汽
- 鑄造超級型 - 鑄件和機加件的水射流清洗
- 潔淨室(class 100).
| 機器人版本 |
第5軸到達距離 |
承重能力 |
| |
 |
|
|
|
|
|
|
|
|
|
|
IRB 4400/60 |
1.96 m |
60 kg |
|
|
|
|
|
|
工作範圍和載荷圖

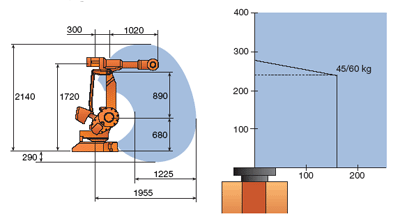

IRB 4400/45 和4400/60

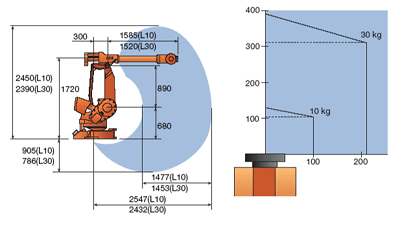

IRB 4400/L10 和4400/L30
應用於：
切割/去毛刺
清洗/噴塗
研磨/拋光
機械管理
物料搬運
| Validation | Ver. |
DWG 2D |
SAT | SW | STEP | PARA- SOLID |
VDA | IGES | STL | VRML | ROB CAD |
Robot Studio |
IGRIP | |
 |
s | compl | compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
joint | compl joint |
compl joint |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
l-30 | compl | joint | compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
sim | sim | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
l-10 | compl | compl joint |
compl joint |
compl joint |
compl joint |
joint | compl joint |
compl joint |
compl joint |
sim | sim | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 | compl | compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
sim | sim | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45 | compl | compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
compl joint |
sim | sim | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2D models are non-revision dependent, i.e. the version available covers all revisions of the robot. |
